PRAFO 654SKG (Dynamic Dorsi-Assist)

Dynamic Dorsiflexion Assist

654SKG - (DDA™) Features Overview

The sophisticated 654SKG DDA™ (Dynamic Dorsi-Assist) Orthosis is designed to dynamically stretch the gastrocnemius and soleus muscles, offsetting equinus contracture.

The use of a series of posterior articulations allows for a virtually unrestricted range of plantar or dorsiflexion. The DDA™ Orthosis also provides nearly unlimited inversion or eversion of the ankle/foot complex.

The DDA™ Orthosis incorporates two elastic straps attached to the distal foot section and proximal calf section. These straps can be adjusted to compensate and/or offset varus and valgus tendencies while maintaining constant dorsi-assistive force. The DDA™ Orthosis incorporates an important telescoping calf section feature that allows for shortening or lengthening of the soft tissue/musculature.  This feature can also be locked out, if applicable.

Video of DDA Actions

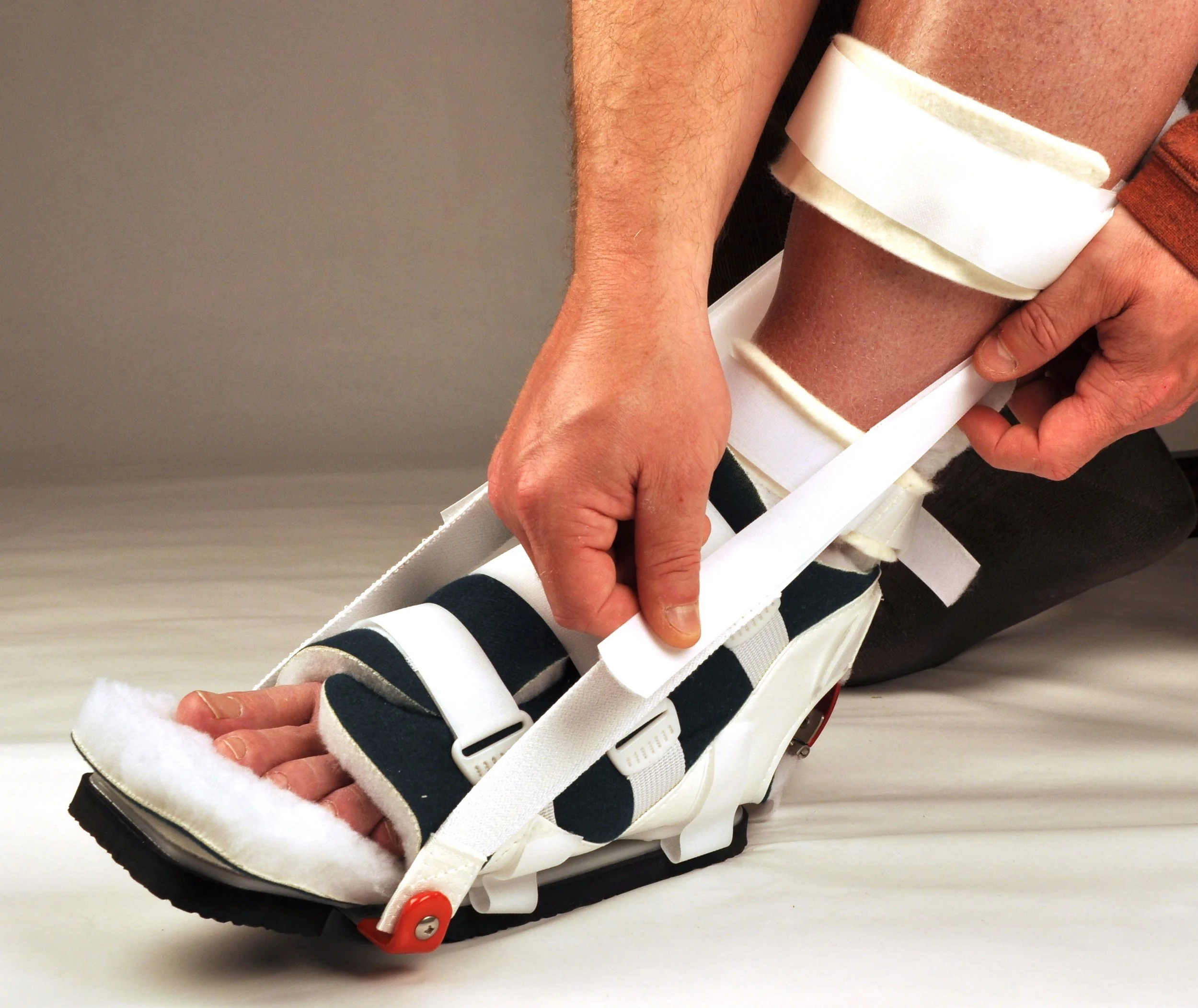

NOTE: The posterior ankle strap is shown inside the upright in the adjacent photos. When fitted properly, the strap is outside the posterior upright bar.

DDA™ AFO 654SKG

654SKG DDA APPLICATIONS

Immediate fit, early Intervention in acute or sub acute rehabilitation of the patient

  • CVA, TBI, SCI and Diabetic neuropathy

  • Facilitation of functional knee and ankle joint position through flexibility of the aluminium posterior upright structure

  • Allows for optimal dorsi/plantar flexion ankle positioning to provide adequate clearance during swing phase and knee stability in stance phase.

Post musculoskeletal injury of the foot and ankle

  • Post tendo achilles lengthening immobilisation

  • Post Botox or serial casting

  • Stable fractures of the foot and ankle

  • Tendon or ligamentous tear/rupture

DDA™ AFO 654SKG

654SKG DDA Features

  • This orthosis maintains constant dorsi-assistive force

  • Clinically proven for effective ambulation*

  • Infinite sagittal plane adjustability

  • Proven superior integrity of the superstructure**

  • Available in Adult, Paediatric and infant versions

Dynamic Dorsiflexion Positioning and Walking Adjustable Hinged Ankle Foot Brace with Inversion and Eversion Adjustable Joint

Adult, Paediatric and Infant Sizes

PRAFO 654SKG "DDA" AFO
170.00
Quantity:
Add To Cart
DDA™ AFO 654SKG

DDA™ AFO 654SKG

654SKG DDA Sizing & Technical

Adult - 654SKG "DDA" Ankle Foot Orthosis

  • Foot length - 6.75 to 12 (inches)

  • Calf height - 12 to 13 (inches)

  • Calf Circumference - 20 (inches)

  • Calf Width - 4 (inches)

  • Foot Plate Width - 3.75 (inches)

  • Weight Limit - 250 (lbs)

Paediatric - 554SKG "DDA" AFO

  • Foot length - 4.75 to 8.5 (inches)

  • Calf height - 9 to 10 (inches)

  • Calf Circumference - 15 (inches)

  • Calf Width - 3.5 (inches)

  • Foot Plate Width - 3.5 (inches)

  • Weight Limit - 125 (lbs)

Infant - 454RKG "DDA" AFO

  • Foot length - 3.5 to 6.5 (inches)

  • Calf height - 6.4 to 7.4 (inches)

  • Calf Circumference - 13.5 (inches)

  • Calf Width - 2.6 (inches)

  • Foot Plate Width - 2.75 (inches)

  • Weight Limit - 50 (lbs)
